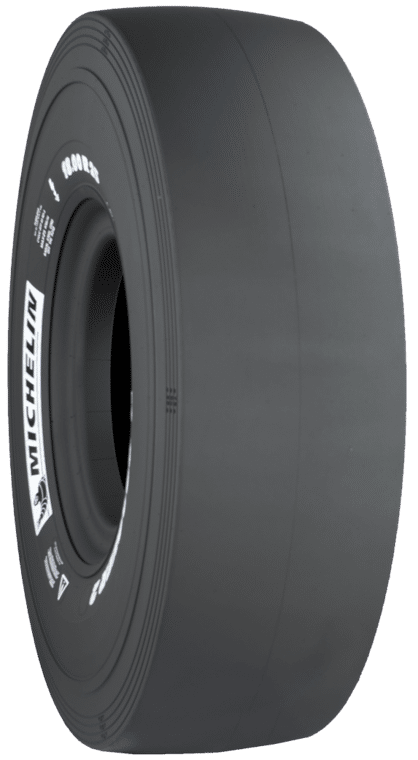

MICHELIN X-TERMINAL T
Keep your machine on the move and your budget under control
- Versatility
- Productivity
- Safety and reliability
Edito terminal tractor and trailer Tyre
pneu minning MICHELIN
Technical Specifications
| Product | MICHELIN X TERMINAL T - 280/75R22.5 |
|---|---|
| Overall Diameter | 995 mm / 39 inch |
| Section width | 279 mm / 11 inch |
| Recommended rims | 8.25 |
| Rolling circumference (mm) | 3000 |
| Filling volume 100% (lts) | 85 l / 22 gal |
| Load Index | 168 |
| Speed Index | A8 |
| Tread depth | 31 mm / 1.2 inch |
| Loaded radius | 447 mm |
| TRA code | IND-4 |
| Min Dual Spacing | 326 mm / 12.83 inch |
| CAI | 004371 |
Pressures (bar and psi) & Loads (kg and lbs)
|
bar psi |
6 87 |
8 116 |
10 145 |
|---|---|---|---|
| (kg - lbs) terminal-tractor | |||
|
0 km/h 0 mph |
5350 11795 |
6900 15212 |
8450 18629 |
|
5 km/h 3 mph |
5060 11155 |
6450 14220 |
7840 17284 |
|
10 km/h 6 mph |
4370 9634 |
5800 12787 |
7280 16050 |
|
25 km/h 16 mph |
4200 9259 |
5300 11684 |
6300 13889 |
|
40 km/h 25 mph |
3750 8267 |
4675 10307 |
5600 12346 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
